Repeatedly walking to reserve stock for the same fast-moving case consumes time and creates replenishment interruptions. Carton flow racking brings cases forward by gravity so pickers work at one face while replenishment occurs at the other. Its FIFO behavior is a result of the physical path and disciplined loading, not a guarantee that every dated item will leave in order. Understanding that distinction helps you choose suitable cartons and set workable lane rules.
Receiving identifies the SKU, lot and date; replenishment assigns the case to the correct lane.
The operator loads from the rear without placing a newer case ahead of older stock.
The carton rolls forward under gravity and stops at the pick presentation point.
After the front carton is picked, the next carton advances into position.
This is a lane-level sequence. If two lots are split across several lanes, or a picker chooses a different lane first, the entire SKU is not necessarily globally FIFO. A warehouse management rule, visible lane labels and date checks are still needed where strict expiry control matters. Some operations use FEFO, first expired first out, which requires comparing expiry dates rather than assuming arrival order matches them.
Gravity works only when the case base can travel reliably on the selected wheels or rollers. Record case length, width, height, weight range, bottom construction, contact points and any straps or protrusions. A crushed bottom, soft bag or uneven package may stall, skew or damage the track. Test the lightest and heaviest representative cases at the proposed pitch and lane length before locking in a layout.
The lane needs sufficient clearance for the actual carton, yet excessive lateral space can let it turn sideways. Track width, wheel spacing, guide rails, front stops and loading height should be considered as one assembly. Do not infer a universal load limit from the appearance of a rack: confirm the design load per lane, level and bay with the supplier.
Flow lanes are most useful for repeat picks of stable case sizes, with enough demand to justify a dedicated lane and enough replenishment volume to keep it supplied. Separated pick and fill faces can reduce interference between those tasks. The benefit depends on travel patterns, pick frequency and how often lanes must be reset; it cannot be expressed as a universal labor-saving percentage.
For slow-moving, irregular or frequently changing cartons, Wide span shelving may use space more flexibly. Reserve pallet inventory may belong on Selective pallet racking, with only the active case-pick quantity moved to flow lanes. This division avoids using an expensive picking face as long-term storage.
Assign and label one SKU and compatible lot sequence per lane; document how mixed lots are handled.
Keep replenishment at the loading face and picking at the designated front face.
Inspect for stalled cases, damaged packaging and incorrectly set stops before shifts.
Reconcile physical lane order with system lot records, especially after returns or exceptions.
The shared word “flow” can obscure very different units of handling. Carton flow is arranged for cases, totes or suitable piece-pick containers, usually at a person-facing pick area. Pallet flow is designed for pallet loads and requires a separate structural and handling design. Do not place a pallet on a carton-flow lane or infer one system’s capacity from the other. Define whether the operator removes a full case, opens a case at the pick face, or takes individual pieces. That choice changes presentation height, replenishment quantity and the amount of packaging waste at the workstation.
The rear loading face and front picking face are useful because the two tasks can happen with less interference, but they require circulation space on both sides. A wall-mounted one-face arrangement does not provide the same rear-to-front sequence unless its loading method is explicitly designed for it. Draw the paths taken by the replenisher, picker and empty carton, including crossing points. A compact rack can still make the whole process slower if supply cartons travel a long detour or staff must repeatedly pass through the picking aisle to restock.
A lane should hold enough cases to bridge the interval between replenishment visits without consuming an excessive share of the pick face. Estimate picks by shift for each SKU, the number of cases removed per visit and the lead time to bring reserve stock forward. Add a reasonable buffer for normal variation and compare that target quantity with cases physically fitting in the lane. A fast mover may need several parallel lanes to avoid an empty presentation point, while a slow mover may not justify a dedicated flow lane at all.
Deep lanes are not automatically better. Greater depth increases the number of cases in reserve but may increase track cost, the chance of a stalled carton, and the distance needed to reach a problem. It can also make lot changes less flexible when older stock remains in the lane. Use the actual case pitch, including clearance between units, rather than dividing nominal depth by nominal carton length. Test the loaded lane with several cartons, since the behavior of one empty track may not represent a replenished lane.
A stalled carton may have a crushed base, an exposed tape edge, an uneven center of gravity or a footprint too narrow for the wheel pattern. Two cartons may also press against each other when an unsuitable slope, stop or guide causes skewing. The correct response is to stop and investigate the specific lane, not simply push harder from the rear. Operators need a safe clearing procedure and a way to isolate a faulty lane. Recording which SKU and package type repeatedly stalls helps determine whether the packaging or track geometry needs modification.
Front stops are part of the working interface, not merely accessories. They must retain cases without damaging them and still allow the intended pick motion. Guides should keep cartons aligned without squeezing irregular packaging. The chosen wheel or roller platform must suit the contact surface and weight range; friction can change with moisture, dust and wear. Build inspection and cleaning into the operating routine, and replace damaged components under the site procedure. A gravity system has no motor to drive the case forward when these basic conditions are wrong.
A label at the front of a lane should identify the SKU and, where relevant, the lot or expiry rule. Replenishment staff must know whether a partially filled lane can accept a new receipt. If older and newer cases have different dates, the system must record which lane contains which lot and how pickers choose among lanes. A physical FIFO path within one lane cannot resolve a mistaken allocation across multiple lanes. Periodic checks should reconcile the visible front case, lane label and inventory record, especially after a stock adjustment or return.
Returns deserve a separate decision. A returned carton may be older than the stock already in a lane, yet placing it at the rear would cause it to leave later. It may also be unsuitable for flow if its base is damaged or contents are uncertain. Quarantine, inspection and a documented re-entry rule are more reliable than pushing it into an open lane. The same principle applies when a count discrepancy appears: establish the physical sequence before relabeling stock, rather than assuming the gravity path has preserved the database order.
Compare the flow zone with a static-shelf baseline using the same SKU set and order profile. Useful measures include picker travel per order, cases picked per hour, replenishment trips, lane stockouts, packaging damage and the time spent clearing stalls. Observe peak as well as ordinary shifts. A gain in picking speed may be offset by more frequent replenishment if lane capacities are too small. Conversely, dedicated replenishment routes can improve flow even if the rack footprint itself changes little. This makes the operational benefit measurable instead of relying on a generic percentage claim.
A small pilot is often more informative than a whole-building assumption. Choose a representative group of fast movers with different carton sizes, record their current handling pattern, then test the lane design and replenishment rule. Include an item whose packaging is near the proposed limits, rather than testing only ideal cartons. Review whether pickers follow the intended face and whether replenishment happens before stockout. The lessons can guide track selection and SKU allocation before the remaining area is committed.
Carton flow can support both full-case and piece picking, but the two tasks require different presentations. For a full-case pick, the worker removes the whole carton and the next one advances. For a piece pick, an opened carton may remain at the front while its contents decline, changing its rigidity and weight distribution. Test that state rather than assuming the unopened carton trial is sufficient. Provide a place for empty packaging and a clear signal for replenishment when the active case is nearly empty.
A flow lane should never be used as an excuse to bypass product handling rules. Temperature-sensitive goods, fragile contents and regulated inventory may require additional controls independent of rack choice. The rack can organize sequence, but it does not verify product condition, expiry data or suitability for sale. Define who checks those attributes at receipt, replenishment and picking. Where several batches share a physical area, use the inventory system and location labels to make the intended pick order auditable.

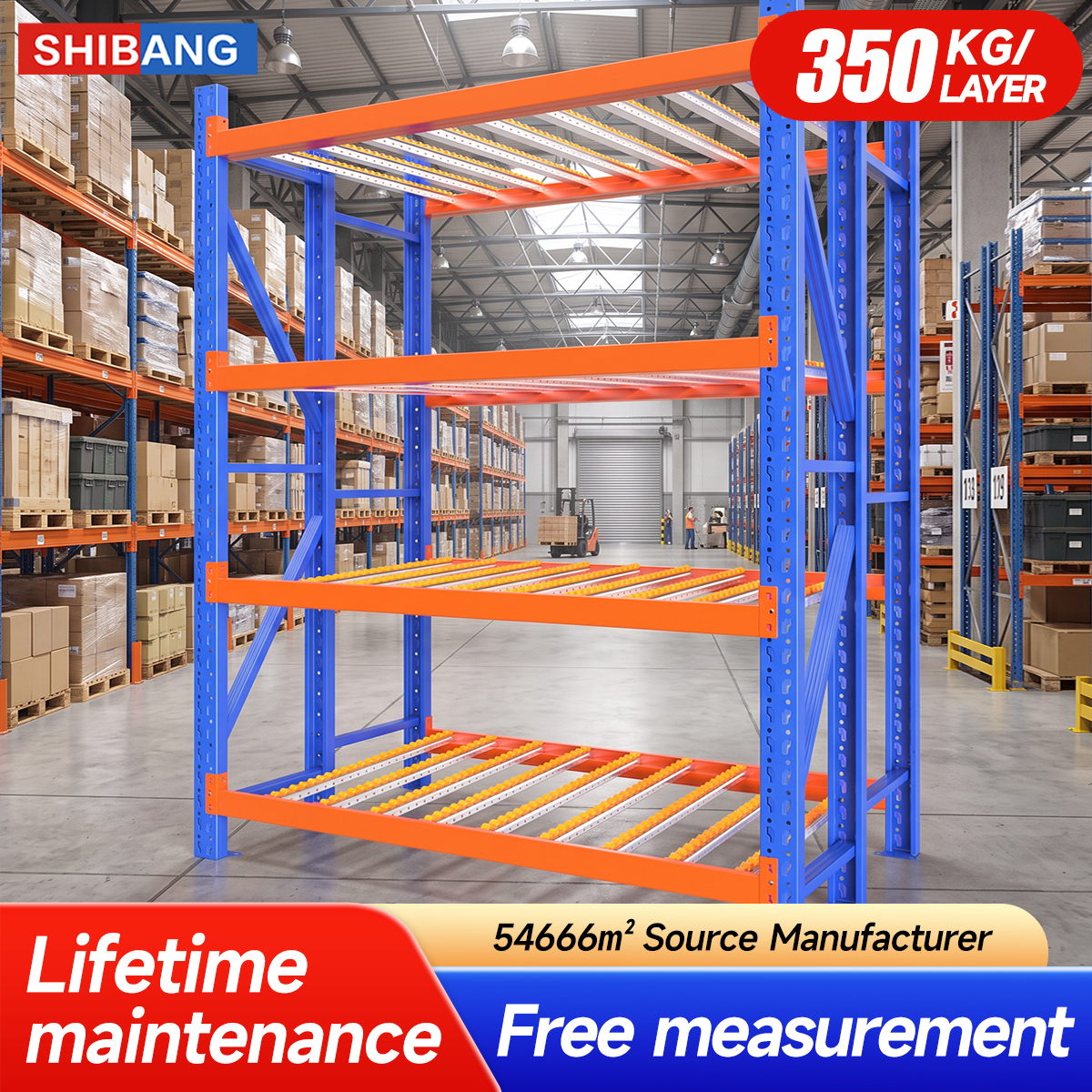

Carton flow racking is a gravity-fed case-picking method that can make lane-level FIFO intuitive when cartons, tracks and operating rules fit together. It is most compelling where repeated picks and replenishment justify dedicated lanes. Verify carton travel and lot control with actual products before expanding across a facility. Shanghai Shibang Storage Rack Co., Ltd. manufactures carton flow and adjacent storage products, but the final lane design should follow tested cartons and the site workflow.
No. Correct rear loading and front picking create the sequence within a lane; labels and inventory controls govern multiple lanes and exceptions.
Possibly, but the base must remain rigid and stable with its changing contents. Test the actual pick state and confirm containment at the front stop.
No. FEFO prioritizes the earliest expiry date, which may differ from receipt order and requires date-aware allocation.
Stop using the affected lane, identify packaging or track interference, and clear it under the site procedure before resuming picks.
