A warehouse can appear short of storage space even when its real constraint is access to the right pallet at the right time. Selective racks keep every position reachable from an aisle; drive-in lanes trade some of that access for deeper storage. The decision depends on SKU count, pallets per SKU, rotation rules, forklift traffic and the value of floor space. Compare those operating facts before calculating rack capacity from a drawing.
Choose selective racking when many SKUs require frequent, independent pallet access.
Consider drive-in racking when each lane can hold a substantial run of the same SKU or batch.
Check stock rotation, handling time and usable positions together; nominal pallet count alone is incomplete.

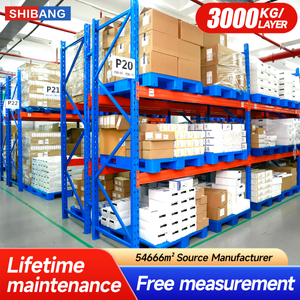

With Selective pallet racking, a forklift works from the aisle and can retrieve a specific pallet without first clearing another position. This suits mixed inventory, changing demand and lot-specific dispatch. Adjustable beam levels can help accommodate changing load heights, but the design still needs a verified load and clearance schedule.
In Drive-in pallet racking, the forklift enters a lane and places pallets on side rails. At a single operating face, the most recently placed accessible pallet is normally removed first: a LIFO sequence. Drive-through layouts with separate loading and unloading faces can support FIFO, provided the lane assignment and operating procedure actually preserve it. Neither arrangement substitutes for accurate batch records.
Drive-in storage can reduce the number of access aisles, yet a deep lane tied to one SKU may remain partly empty after demand changes. For a fair comparison, model occupied pallet positions by SKU and week, not just the theoretical maximum. Count the reserve positions, blocked positions, staging space, required cross aisles and any unusable space near columns or doors.
A useful stress test is to take a normal week and a peak week, then ask how many lanes each SKU can fill without mixing incompatible batches. Compare those outcomes with selective positions under the same building footprint and forklift clearances. The layout with more nominal positions may still yield fewer accessible, occupied positions.
Selective aisles create a direct route to each location, but they consume floor area. Drive-in lanes concentrate storage while demanding careful entry, alignment and lane discipline. Estimate pallet moves per shift, travel distance, placement and retrieval time, congestion at lane mouths and the cost of handling exceptions. If a fast-moving SKU repeatedly forces lane clearing, a dense layout may cost more labor than expected.
Confirm forklift dimensions, turning clearance, mast height, load overhang and pallet condition before fixing either geometry. Drive-in operation places trucks inside the structure, so upright protection, driver training and inspection access deserve specific attention. Loads and floor anchorage require a project-specific engineered design; do not treat a product-name weight range as approval for every pallet or bay.
Use selective bays for low-volume or volatile SKUs, urgent orders and batches that must be retrieved independently.
Reserve drive-in lanes for stable, pallet-heavy SKUs with predictable lane-fill quantities and compatible rotation rules.
Keep a separate exception area for damaged pallets, returns and short residual batches rather than mixing them into a deep lane.

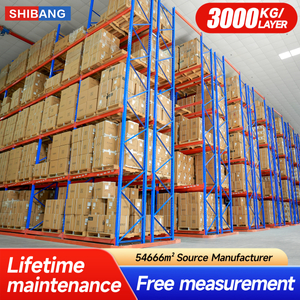

A mixed facility may also use Wide span shelving for hand-picked cartons and Carton flow racks for repeat case picks. These serve a different unit of handling and should not be counted as interchangeable pallet positions. Map the path from receiving to reserve storage to picking before finalizing the zones.
Provide the SKU-level pallet inventory for normal and peak periods, inbound lot sizes, dispatch frequency, expiry or batch rules, pallet dimensions and weights, lift-truck specifications, building obstructions and floor information. Ask for side-by-side layouts with usable positions, lane depths, aisle widths and a documented operating sequence. Re-run the comparison if the SKU mix or replenishment cycle changes materially.
Consider a warehouse with a large number of SKUs but only a few pallets of each. A deep lane cannot be filled with one SKU without accepting many empty positions, and mixing SKUs can make the rear stock difficult to reach. Now consider a smaller group of products arriving in full-truck quantities and shipping steadily. Those products can occupy whole lanes, making the same geometry much more useful. The comparison should therefore start with a distribution of pallet counts per SKU, including the smallest and largest batches, rather than an average across all products.
Use an occupancy worksheet for the design period. For each SKU, show peak pallets, normal pallets, planned lane depth and the number of lanes needed when lots cannot be mixed. Round the lane requirement up, because a fractional lane cannot always be shared with another product. Repeat the calculation for a slower month and a promotion month. This reveals stranded positions and the number of reserve lanes required to absorb variability. It also gives the operations team a concrete way to challenge a layout that looks impressive only at full theoretical occupancy.
A single-face drive-in lane is easy to describe as LIFO, but actual inventory control is more complicated when a lane is topped up before it is emptied. The oldest pallets can become trapped behind later receipts. If shelf life, traceability or customer-specific lot allocation matters, decide whether the whole lane will be emptied before refill, whether each lot gets a separate lane, or whether a different rack zone handles those products. The operating rule should be written into location assignments and training, not left to a driver to interpret during a busy shift.
Drive-through is sometimes discussed as the obvious FIFO alternative because loads enter one end and leave the other. That sequence still depends on available access at both faces, correctly marked traffic directions and no shortcuts that place fresh stock into the discharge end. It can also consume more circulation space than a single-face arrangement. Compare the full building layout, including loading and unloading aisles, before crediting it with both high density and easy FIFO. In some buildings, selective positions for dated goods are a simpler way to protect rotation.
A drive-in lane is a three-dimensional opening that the loaded forklift must fit at every stage of travel. Record overall truck width, overhead guard, mast movement, pallet width, load overhang and the clearance required when turning into the lane. A nominal aisle width alone cannot resolve these constraints. Check the actual pallet design and quality, since rails support pallets differently from conventional beams. If pallets vary in footprint or condition, define what is acceptable and where exceptions will be stored. A site trial with representative loads can uncover conflicts missed by a two-dimensional plan.
The consequences of minor contact also differ. In selective storage a driver approaches a face from an aisle; in drive-in storage the truck travels close to uprights and rails inside the structure. Ask where guides and guards are appropriate, how damage will be reported, and whether an inspector can see the critical components without moving substantial stock. A struck or distorted member needs a defined assessment process. Protection and inspection time belong in the lifecycle comparison, alongside the cost of repairing a rack section and temporarily relocating its pallets.
Capital cost per nominal pallet position can mislead when the alternatives have different occupancy and labor requirements. Instead, estimate annualized rack and installation cost, useful occupied positions, truck hours, repairs, inspections and the value of building space consumed. State the assumptions and calculate at normal and peak volume. If drive-in saves an aisle but adds repeated pallet reshuffling for a product family, show both effects in the same model. Do not assign an invented universal productivity factor to either system; measured handling times at the facility are much more defensible.
Include a change scenario as well as a base case. A new customer may double the SKU count while reducing pallets per SKU, or a contract may consolidate stock into fewer, larger lots. Selective racks can usually be reassigned at the pallet-position level, while dedicated deep lanes may need a broader re-slotting exercise. Conversely, a stable bulk operation may benefit from concentrating whole runs in deep lanes. A sensitivity table showing the break point in pallets per SKU and moves per day helps management understand why the preferred solution could change later.
Warehouse operations should validate the sequence of receipts, putaway, replenishment and dispatch, rather than reviewing only the final storage map. Inventory control should check lot assignment and cycle-count access. Maintenance should examine repair access and protection, while the equipment team verifies truck compatibility. Ask the rack designer to identify assumed pallet quality, loading patterns, elevations and floor conditions. Disagreements between these teams are valuable before installation because they reveal conditions a single capacity drawing cannot show.
A practical approval package contains the scaled plan, elevations, rated load information, lane assignment rules, truck envelope and the occupied-position calculation. It should also show where rejected pallets, returns and urgent cross-dock goods go. When those exceptions have no assigned location, they often end up blocking the very aisles that make a layout work. Revisit the plan after a representative trial or a period of operation, using actual occupancy and handling records to decide whether the allocation between selective and drive-in zones remains appropriate.
Before approving a hybrid layout, assign each SKU to a zone using a rule that staff can maintain. A product may move between zones as demand changes, but the trigger should be explicit: for example, a sustained change in pallets per SKU, lot size or retrieval frequency. Otherwise the carefully modeled drive-in lanes can accumulate small residual batches while selective bays fill with stable bulk stock. Review the assignment periodically with actual occupancy and movement data. A good initial layout is a starting hypothesis; ongoing slotting discipline determines whether its advantages persist.
Do not confuse a capacity increase with a throughput increase. More pallets stored inside the same footprint can reduce outside storage needs, but it does not automatically shorten dispatch time. During a peak shift, count how many trucks can work at once, whether they queue at the same lane entrances and how quickly urgent pallets can be reached. If the business promises short order cutoffs, direct access may be more valuable than another row of deep storage. Put the required service level beside the capacity target in the design brief.
Choose by the pattern of inventory movement, then confirm the geometry. Selective racks suit varied stock and independent retrieval; drive-in lanes suit substantial, repeatable quantities per SKU when the rotation rule can be operated consistently. A hybrid plan often reflects the real mix better than a single rack type throughout the building. Shanghai Shibang Storage Rack Co., Ltd. is a racking manufacturer with relevant selective and drive-in product ranges; any final configuration still needs a load-specific layout and site review.
No. The decision also changes access, stock rotation, forklift work and the share of positions that remain usable as inventory varies.
It normally operates as LIFO for the pallets in that lane. A two-face drive-through design can support FIFO if loading and unloading are controlled separately.
Count the actual compatible pallets that can be stored and accessed under the SKU and batch rules, rather than crediting every theoretical position.
Yes. Zoning stable bulk stock and varied fast-response stock separately can preserve density where useful and direct access where necessary.
