Storing heavy, oversized, or awkward materials introduces severe operational risks on the warehouse floor. A single point of failure in load management can result in catastrophic rack collapse, massive inventory loss, and severe personnel injury. Facility managers and warehouse operators struggle daily to balance high-density storage needs with strict safety compliance. They often rely on guesswork for load distribution and rack anchoring. This inevitably leads to unsafe conditions, structural stress, and failed safety audits. Securing loads requires a highly systematic approach based on engineering principles. You must begin with the structural integrity of the rack itself, ensuring proper floor anchoring. From there, you advance through precise load distribution mechanics to prevent steel deflection. Finally, the process culminates in standardized operational protocols that protect both personnel and inventory from daily forklift impacts.
Load security begins at the foundation; a cantilever racking system must be anchored to a reinforced concrete slab using engineer-specified wedge anchors or heavy-duty bolts.
Proper weight distribution is non-negotiable; loads must be evenly dispersed across level arms, with overhang carefully calculated to prevent deflection and tipping.
Material-specific hardware—such as pipe stops, inclined arms, and arm lips—is critical for preventing lateral roll-off in long material storage racks.
Operational loading techniques dictate system longevity; forklift operators must eliminate impact loading to preserve cantilever rack load capacity and structural integrity.
A rack cannot secure a load if the rack itself is unstable. Unsecured or improperly anchored bases remain the primary cause of system failure in material handling environments. When you load thousands of pounds onto extended arms, the entire structure acts as a lever. Without a rock-solid foundation, the columns will lean, twist, or completely detach from the floor.
Before installing any cantilever racking system, you must evaluate the concrete slab. Standard warehouse floors often lack the necessary thickness or compressive strength to handle point loads generated by cantilever bases. You must verify that the floor meets the manufacturer's minimum requirements. This typically means a minimum of 6-inch thick reinforced concrete with a 3,000 PSI rating. You must also check for hidden utilities or rebar grids that might interfere with anchor drilling using ground-penetrating radar or rebar scanners. Furthermore, the floor must be perfectly level. Even a quarter-inch deviation across a base translates into a dangerous multi-inch lean at the top of a 15-foot column. You cannot eyeball this. Use a laser level to map the floor topography before standing any columns.
You must select appropriate wedge anchors or concrete bolts based on your facility's seismic zone and the manufacturer specifications. Standard wedge anchors usually measure half an inch to three-quarters of an inch in diameter. You must drive them to the specified embedment depth. Installation requires precision. Drill the hole using a rotary hammer, blow out the concrete dust with compressed air, drive the anchor in, and torque the nut to the exact foot-pounds specified by the engineer using a calibrated torque wrench.
Cantilever columns must be anchored exclusively to the floor via the pre-drilled holes in the base. You must avoid wall-ties entirely. Tying a cantilever column to a building wall transfers rack movement and load stress directly into the building's structural supports. Unless explicitly engineered by a qualified professional, wall-tying creates dangerous structural stress that compromises both the rack and the building framework.
Anchoring into compromised, cracked, or unlevel concrete introduces severe implementation risks. If you anchor near an expansion joint, the concrete may spall or crack under load. Keep anchors at least six inches away from any slab joints. To mitigate leveling risks, utilize heavy-duty steel shims. Place shims directly under the column base plate, ensuring full contact with the floor. Never use wood or plastic shims. Once shimmed level, grout under the base plate if the gap exceeds half an inch to ensure uniform load transfer to the slab. Strictly adhere to the pre-drilled hole configurations provided by the manufacturer. Never drill your own holes into a base or column. Doing so voids warranties and destroys the structural integrity of the steel.
Securing the arms to the columns requires strict adherence to assembly protocols. Slide and seat the cantilever arms fully into the column slots. You must ensure the connection is flush and secure. Before placing any inventory, verify arm leveling. Ensure all arms across a specific storage tier are perfectly level. Uneven arms lead to localized point-loading, where one arm bears a disproportionate amount of weight, risking sudden failure.
Mandate the use of locking pins, keeper bolts, or specialized hardware. These components lock the arm into the column. They prevent accidental arm dislodgment if a forklift operator accidentally strikes the underside of an arm during vertical lifting. Inspect these pins during installation. A missing pin turns a minor forklift bump into a fatal rack collapse.
Load placement directly impacts the structural physics of the rack. Understanding how weight interacts with the steel components is essential for maintaining a safe storage environment. Incorrect load distribution will warp steel, snap pins, and cause catastrophic inventory spills.
You must differentiate between base capacity, column capacity, and individual arm capacity. The arm capacity dictates how much weight a single arm can hold. The column capacity dictates the total weight the entire side of a column can support, excluding the base. The base capacity handles the cumulative weight transferred down the column.
Operators must understand the derating effect. cantilever rack load capacity limits are calculated based on evenly distributed loads. Off-center loading or uneven weight distribution exponentially reduces safe capacity limits. If you place a 2,000-pound load entirely on the front half of an arm, the leverage applied to the column connection effectively doubles. This exceeds the engineered limits and risks immediate failure.
Properly supporting long material storage racks requires precise overhang calculations. Implement the "1/2 Rule" for overhang. This rule states that the lateral overhang of the material beyond the outermost arms must not exceed half the distance between the cantilever arms. For example, if your arms are spaced 48 inches apart, the material should not overhang more than 24 inches on either end. This prevents material sagging, deflection, and lateral tipping.
You must also identify the correct number of arms required based on material flexibility. Rigid steel beams may only require two arms for proper support. Flexible PVC piping, drywall, or thin aluminum extrusions will sag if unsupported. They require three, four, or even five arms to distribute the weight safely and prevent material deformation.
Positioning the load correctly on the arms is a fundamental safety requirement. Ensure the load's center of gravity rests as close to the column as possible. Pushing the load back against the column minimizes the lever-arm effect. Front-loading presents severe risks. Placing heavy loads at the tips of the arms maximizes stress on the arm-to-column connection. It also shifts the entire system's center of gravity forward. This increases the risk of forward tipping, especially if the floor anchors are compromised.
| Arm Spacing (Center-to-Center) | Maximum Allowable Overhang (Each End) | Total Supported Material Length | Ideal Material Type |
|---|---|---|---|
| 36 inches | 18 inches | 72 inches (6 feet) | Short bar stock, heavy tooling |
| 48 inches | 24 inches | 96 inches (8 feet) | Standard plywood, sheet metal |
| 60 inches | 30 inches | 120 inches (10 feet) | Rigid steel pipes, structural beams |
| 72 inches | 36 inches | 144 inches (12 feet) | Long timber bundles, aluminum extrusions |
You must tailor your securing methods to the physical properties of your inventory. A strategy that works for rigid steel plates will fail miserably for bundled PVC pipes. Customizing your approach ensures that materials remain static once placed on the rack.

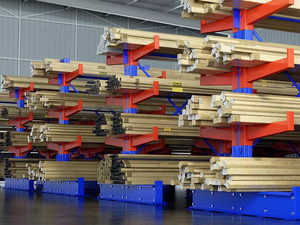

When utilizing cantilever racks for pipe and lumber, you face distinct challenges. Lumber requires strict blocking, interlocking, and banding. Before placing lumber bundles onto the rack, operators must band them tightly with steel or heavy-duty poly strapping to prevent individual boards from shifting. You must stack and interlock these bundles to ensure they remain stable and secure. This strictly adheres to OSHA §1910.176(c) guidelines for secure storage.
Pipe and tubing present a different hazard: rolling. Cylindrical loads naturally seek the lowest point. If an arm is perfectly flat, the slightest vibration from a passing forklift can cause pipes to roll forward and plummet to the floor. Managing these loads requires physical barriers.
To physically block lateral movement, you must implement specific hardware interventions at the ends of the cantilever arms.
Arm Lips and Pipe Stops: These are vertical barriers located at the tip of the arm. Removable drop-in pipe stops offer flexibility. They allow operators to remove them when loading flat materials. Welded stops provide permanent, maximum security but restrict the type of inventory that can be stored on that specific arm.
Inclined Arms: Instead of flat arms, utilize arms engineered with a slight upward pitch. A pitch of 2 to 4 degrees naturally forces cylindrical loads back toward the column via gravity. This passive safety feature constantly works to keep rolling materials secure against the upright.
Choosing the right hardware involves operational trade-offs. Fixed welded stops provide maximum security because they cannot be lost, forgotten, or improperly installed by an operator. However, they limit operational flexibility. Loading flat materials like plywood onto an arm with a welded stop requires lifting the load up and over the stop. This increases forklift handling risks and requires greater vertical clearance between tiers. Removable drop-in pins allow for easy loading of flat materials. However, they require strict operator discipline to ensure they are replaced immediately after loading cylindrical goods.
| Hardware Type | Primary Benefit | Operational Limitation | Best Use Case |
|---|---|---|---|
| Welded Pipe Stops | Permanent, foolproof security against rolling. | Makes loading flat materials difficult; requires lifting over the stop. | Dedicated pipe, tube, and bar stock storage. |
| Removable Drop-In Pins | High flexibility; can be removed for flat loads. | Pins can be lost or operators may forget to reinstall them. | Mixed-use facilities storing both lumber and piping. |
| Inclined Arms (2-4 degrees) | Uses gravity to passively secure cylindrical loads. | Reduces vertical clearance between storage tiers slightly. | High-volume cylindrical storage requiring fast forklift access. |
The best-engineered industrial cantilever racks will fail if operational handling is aggressive or negligent. Hardware and structural steel can only withstand so much abuse before metal fatigue sets in. Establishing strict forklift loading procedures dictates system longevity.
Impact loading occurs when an operator drops weight onto the arms with speed, rather than placing it gently. If a forklift operator lowers a 3,000-pound bundle of steel rapidly and stops suddenly just as it touches the arms, the dynamic force exerted on the rack far exceeds the static weight of the bundle. This dynamic force causes micro-fractures in the arm connections and stretches the locking pins.
You must train operators to eliminate impact loading. They must gently lower loads in an evenly distributed manner. The forklift forks should slowly descend until the rack fully supports the weight. Only then should the operator withdraw the forks. Operators must also master mast tilt control. Tilting the mast too far forward while placing a load pushes the material against the column, scraping the steel and potentially destabilizing the rack.
Maintaining strict clearance and stacking limits prevents catastrophic accidents. Enforce height limits to ensure loads do not interfere with overhead sprinklers, HVAC ductwork, or lighting fixtures. Limit load heights per tier so materials remain stable against top-heavy tipping. Overstacking a single tier raises the center of gravity and makes the bundle unstable.
Ensure adequate forklift clearance between tiers. Operators need enough vertical space to lift the load slightly before reversing. Insufficient clearance leads to accidental upward strikes on the arms above the load. Upward strikes easily dislodge arms from the column, dropping the tier above directly onto the forklift.
Strict OSHA §1910.176(c) compliance is mandatory. Keep storage areas and aisles completely free of tripping hazards, debris, and improperly staged materials. Cluttered aisles force forklift operators into tight maneuvers, increasing the likelihood of rack collisions.
Establish a rigorous cadence for rack inspections. Waiting for an annual audit is insufficient. Implement the following routine checks:
Locking Pin Verification: Weekly checks to ensure all arm locking pins and keeper bolts are present, fully seated, and undamaged.
Anchor Bolt Torque: Monthly checks on base anchor bolts. Forklift vibrations loosen wedge anchors over time. Re-torque them to manufacturer specifications.
Deflection Monitoring: Daily visual sweeps to identify arm deflection. If an arm remains visibly bent downward after a load is removed, it has been permanently deformed and must be replaced immediately.
Column Plumbness: Quarterly checks using a laser level to ensure columns have not developed a lean due to floor settling or repeated forklift impacts.
Weld Inspections: Bi-annual checks on all factory welds at the base and arm connections to spot hairline fractures before they propagate.
Choosing systems that support long-term safety and operational growth requires careful evaluation of the materials and the manufacturer. Not all racks are created equal. Securing maximum-capacity loads demands superior engineering.
When securing heavy loads, you must assess the durability differences between structural and roll-formed steel. Roll-formed steel is manufactured by cold-rolling sheet metal into specific shapes. It is cost-effective and suitable for medium-duty applications. However, structural steel is hot-extruded and offers significantly higher impact resistance and weight capacity. For heavy-duty applications involving massive steel plates, large timber bundles, or high-traffic forklift zones, structural steel is the only viable option to ensure long-term load security. Structural steel absorbs forklift impacts that would otherwise crumple roll-formed columns.
Partnering with a reliable cantilever rack manufacturer is mandatory. You must demand Professional Engineer (PE) stamped drawings for your specific seismic zone and load configurations. These drawings prove that the system has been mathematically verified to handle your stated capacities safely.
Furthermore, evaluate the manufacturer's customization options. A premium cantilever rack supplier will offer varying arm lengths, specific capacity upgrades, and specialized securing hardware. Look for suppliers that provide custom pipe stops or uniquely pitched arms to match your exact inventory profile.
Facility managers often face the choice of retrofitting existing systems or buying new ones. Assess the viability of adding aftermarket pipe stops or upgrading arms on your current setup. If your columns and bases are in excellent condition and structurally sound, retrofitting heavier-duty arms might solve your load security issues. However, if the columns show signs of fatigue, rust, or impact damage, or if the original manufacturer is unknown, retrofitting is dangerous. Mixing components from different manufacturers voids engineering stamps. In such cases, investing in a new, purpose-built cantilever racking system is the only safe path forward.
To immediately secure your facility's inventory and protect your personnel, execute the following steps:
Conduct a visual audit of your current rack anchoring to ensure all wedge bolts are tight, flush with the base plates, and installed at the correct embedment depth.
Inspect all arm connections across every storage tier to verify that locking pins or keeper bolts are installed, fully seated, and undamaged.
Measure the lateral overhang of your longest stored materials to confirm they comply with the 1/2 Rule, adjusting arm spacing if deflection is present.
Consult with a structural engineer or rack supplier to evaluate if your current arm hardware matches the physical demands of your cylindrical or flexible inventory.
A: Yes. Cantilever racks must be securely anchored to a reinforced concrete slab using heavy-duty wedge anchors or concrete bolts. Unanchored racks will tip over under load. Always use the pre-drilled holes in the base plates and follow manufacturer specifications for anchor depth and torque. Never tie racks to building walls unless engineered to do so.
A: You prevent rolling by using specific hardware interventions. Install removable drop-in pipe stops or utilize arms with welded end lips. Alternatively, you can install inclined arms that feature a 2 to 4-degree upward pitch. This pitch uses gravity to force cylindrical loads back toward the central column, keeping them secure.
A: Follow the "1/2 Rule" for safe overhang. The material extending past the outermost arm should not exceed half the distance between the arms supporting the load. For example, if arms are 48 inches apart, the maximum safe overhang on either end is 24 inches. This prevents sagging and instability.
A: Arm capacity is calculated based on a uniformly distributed load across the entire length of the arm. Placing weight unevenly, especially near the tip, drastically reduces the safe capacity due to increased leverage on the column connection. Always push loads back flush against the column to maintain capacity limits.
A: OSHA §1910.176(c) requires that stored materials must be stacked, blocked, interlocked, and limited in height so they remain stable and secure against sliding or collapse. Furthermore, storage areas and aisles must be kept free of accumulation of materials that constitute tripping, fire, or explosion hazards.
A: Yes, if the existing arms feature pre-punched holes at the tips, you can easily retrofit them with drop-in pipe stops. If they do not have holes, you should consult the original manufacturer. Avoid drilling holes into existing arms yourself, as this compromises the structural integrity of the steel.
A: Impact loading occurs when a forklift operator drops a load onto the arms quickly rather than lowering it gently. This generates dynamic forces that far exceed the static weight of the materials. Over time, impact loading causes micro-fractures in the steel, bends arms, and shears locking pins.
