Heavy-Duty Racking Procurement for a Medical Device Distribution Center

Project Overview

Client: A leading national medical device distribution company (specializing in medical imaging equipment, surgical instruments, and high-value consumables).

Pain Points:

• Irregular Item Storage: Non-standard equipment (e.g., CT components, surgical beds) could not be palletized, forcing floor stacking that limited space utilization to below 30%.

• Safety & Compliance Risks: Precision optical instruments (e.g., endoscopes) were sensitive to vibration, while the lack of independent secure storage for high-value consumables (cardiac stents, implants) led to traceability issues and loss risks.

• Uneven Load Capacity: Equipment weights varied drastically (50kg–2T), but fixed-capacity shelving failed to handle diverse loads safely.

Core Requirements

• Irregular Item Adaptability: Support non-standard dimensions with highly adjustable shelf heights.

• Safety & Security: Shock absorption for precision instruments, anti-tipping mechanisms, and permission-based access for high-value items.

• Load Capacity: ≥1,500kg per pallet; reinforced columns to handle uneven loads.

• Traceability & Compliance: Comply with Good Supply Practice (GSP) for medical devices, enabling full-process UDI (Unique Device Identification) traceability.

Proposed Solution

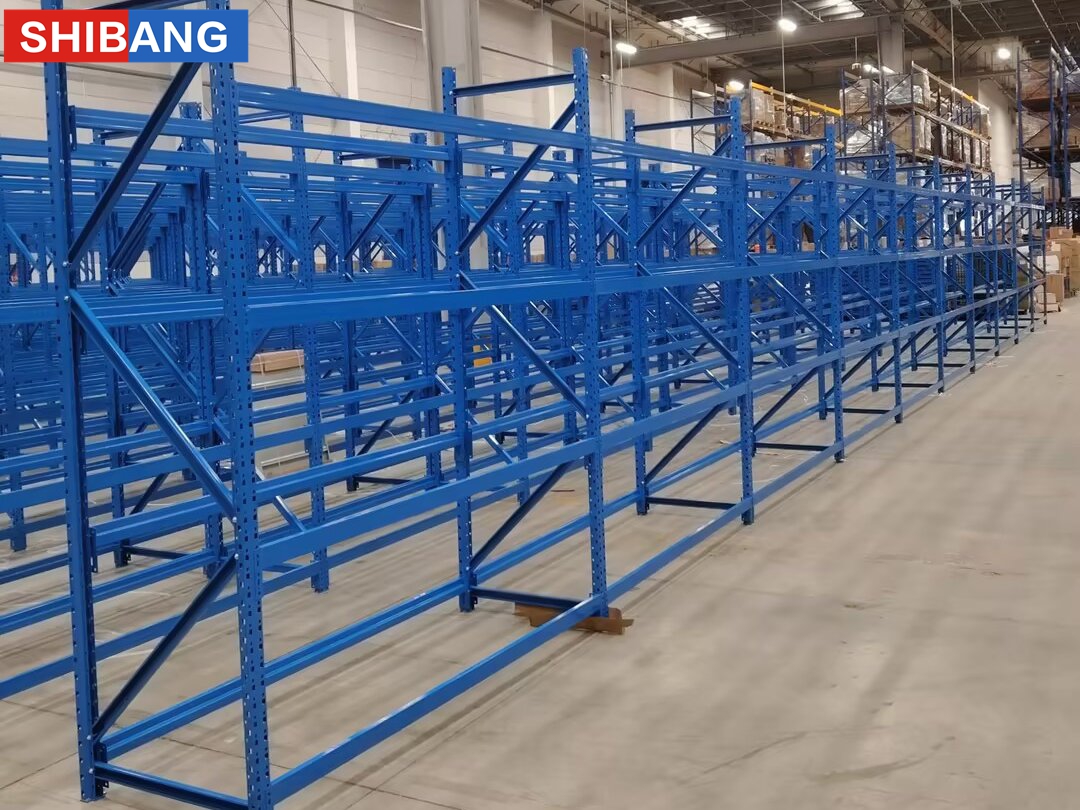

Implementation of a Hybrid Heavy-Duty Selective and Cantilever Racking System:

• Structural Configuration:

• Selective Racking Zone (60% area): 8m high racks with 100×80mm columns (2.5mm thick) and box beams (1,500kg/level). Adjustable in 75mm increments to fit standard pallets.

• Cantilever Racking Zone (40% area): Designed for long, bulky items (e.g., surgical rails, traction frames). Features 600mm arms with 500kg capacity per arm on heavy-duty bases.

• Safety Design:

• Precision zones fitted with 10mm rubber dampeners and anti-loosening bolts.

• High-value consumables secured in a locked room with electronic smart locks, 24/7 surveillance, and RFID-tagged racks.

• Cleanliness & Compliance: Full electrostatic powder coating (RAL 9010 white) on all-steel surfaces. Solid decks for easy wiping, meeting cleanroom standards.

• Optimized Layout: Zoned for imaging equipment (heavy-duty), surgical instruments (cantilever), high-value consumables (secured), and low-value consumables (carton flow). Total capacity: 2,000 pallet positions and 500 cantilever positions.

Implementation Results

• Space Optimization: Vertical storage replaced floor stacking, boosting space utilization from 30% to 80% and adding 1,500 new storage positions.

• Reduced Damage: Shock absorption features reduced damage to precision instruments from 1.2% to 0.1%, saving over ¥800k annually.

• Efficiency Gains: Standardized zoning improved picking efficiency by 65%, reducing outbound error rates to 0.05%.

• Regulatory Compliance: Passed GSP on-site inspections by the National Medical Products Administration (NMPA). Achieved 100% "one-item-one-code" traceability for high-value devices.

Project Highlights

Tailored for the medical device industry's challenges ("irregular shapes, high value, strict regulations"), the project innovated with a Selective + Cantilever Hybrid Solution. While cantilever racking increased costs by 35% compared to standard shelving, the space recovered and safety enhancements delivered a projected ROI within 2.5 years.
