Go to the hardware market and shout, "Come assemble some medium-sized warehouse racks." The vendor might hand you a simple frame made of thin-walled angle steel. But does the warehouse really need "a stand-up iron frame"? Shibang has worked with too many clients who initially chose cheaper white-label medium-warehouse racks. After two years, the shelves sagged, butterfly holes wore down and loosened, and they had to dismantle and reinstall everything—this is the true waste.

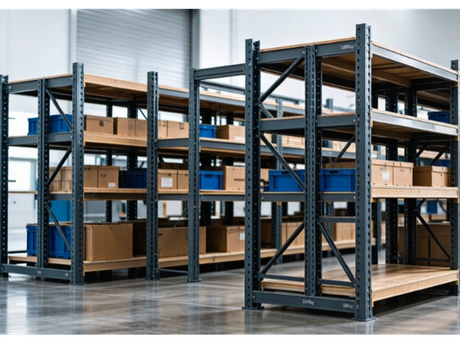

Medium-sized storage racks (commonly referred to as mid-tier racks in the industry) typically denote palletized shelving systems with a load capacity of 200-300kg, primarily designed for manual storage and retrieval. However, many generic white-label racks on the market often only achieve a superficial resemblance: thin uprights, poor hole positioning accuracy, and lack of reinforcing ribs in the shelf plates. The distinguishing feature of Shibang mid-tier racks lies in their structural calculations and process-controlled complete storage solutions:
Butterfly hole precision punching: The vertical column adopts automatic mechanical punching for butterfly holes, with well-controlled hole position tolerances. During crossbeam mounting, there is a clear positioning feel and locking sound, ensuring minimal loosening even after repeated adjustments.
Layer plate with reinforcing ribs: Multiple reinforcing ribs are installed beneath the steel layer plate, featuring a design with anti-slip block grooves to ensure uniform load distribution, reducing deformation risks and minimizing the likelihood of cargo sliding.
Main and auxiliary frame connection series: The first set consists of the main frame (dual columns), while subsequent auxiliary frames share a single column, saving steel material while enhancing overall rigidity, making it suitable for large-area installation.
Most people choose medium-sized racks by only considering length, width, and height. Shibang recommends the opposite approach—first determine how the goods will be picked, then decide how the racks should be configured
High-frequency picking area (waistline height 0.6-1.5m): Reduce the spacing between shelves appropriately, increase the number of shelf layers, and store boxes or parts with high SKU volume and frequent breakage to minimize bending and reaching.
Medium to Low Frequency Storage Area (Upper and Elevated Zones): Increase the shelf spacing, reduce the number of shelf boards or use full sheets of steel shelf boards, and store whole pallets or large-sized materials.
Span and depth matching: For manual access, the recommended span is ≤2.5m and depth ≤1m. If heavy metal components are placed and the span exceeds 2m, a beam-type structure should be used instead of a beamless type to ensure long-term load-bearing stability.
Reserve safety margin: The plan is to place 300kg per layer, and it is recommended to choose a configuration with a nominal load capacity of 360kg or more to avoid plastic deformation caused by long-term full load.
Channel and collision prevention: For manual picking channels, it is recommended to be ≥ 0.8-1m; if hydraulic trucks or a small number of forklifts enter, leave sufficient width in the main channel and install collision prevention corner protectors at the front end of the column.
Surface and lifespan: After acid pickling and phosphating, the medium-sized shelves of Shibang are electrostatically sprayed with plastic, which has strong coating adhesion and corrosion resistance. Compared with white label shelves that only do ordinary painting, they have a longer service life in humid or dusty environments.
Shibang's medium-sized storage shelves are widely suitable for scenarios such as electronic components, hardware accessories, pharmaceutical and daily chemical products, e-commerce disassembly and picking, and temporary storage of semi-finished products in factories. It serves as a bridge between the past and the future - it is more capable of carrying than lightweight shelves, and heavier beam shelves are more suitable for manual precision picking, making it the most commonly used "main echelon".
Before buying a medium-sized shelf, first list the size of the goods, the weight of each box, the frequency of daily storage, and the net height of the warehouse. Let Shibang provide you with layout diagrams and load calculations based on data. Choosing the right parameters is much more important than choosing a low price - a set of qualified Shibang medium-sized shelves can be used for many years without problems, which is the real money saved in the warehouse.
